Roller heat press machine

Main features:

1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Integrated slip ring: free maintenance

4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

6. Small machine, proofing and producing, lower cost.

Roller heat transfer machine
Model	BB80120	BB80170	BB80190
Transfer width	1200 mm (47'')	1700 mm (47'')	1900 mm (74.8")
heating Power	46.8 KW	58.5 KW	58.5 KW
Heating media	Oil
Voltage	3 phase 220 V/380 V
Number of heating elements	39
Diameter of drum	800 mm
transfer speed	180-450 m/h
Max. Temperature	260 ℃
Process Path	feeding in through the top of drum
Blanket separation method	manual
Sensor adjust the Blanket device	no
Function of roll-to-roll	yes
Function of piece-by piece	yes
Number of feeding rollers	3
Number of collection rollers	2
Number of air shaft	2
worktable	yes, without glass
Air compressor	needed, 1 P, (not include)
machine weight	2200 KG	2600 KG	2900 KG
Worktable size	3.5*1.55*1.4 m	3.5*1.88*1.4  m	3.5*2.05*1.4 m

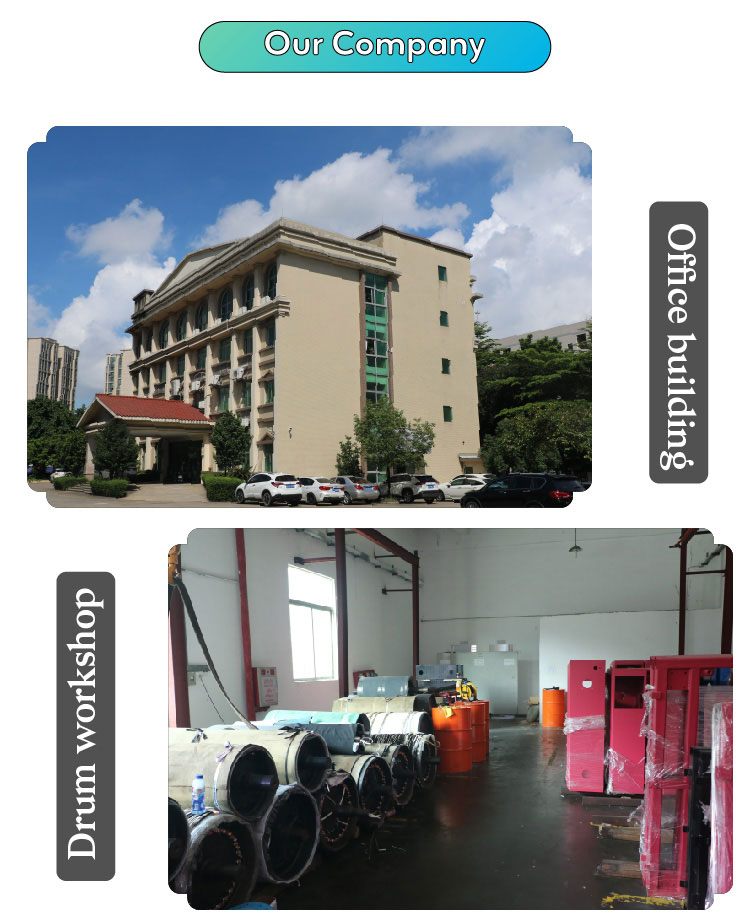

Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine, digital inkjet printer, digital cloth inkjet printer.

Company is committed to digital printing technology research and development, has achieved fruitful results.

Products:

1. Digital machine series: Digital inkjet printer,  digital cloth inkjet printer for roll and pieces.

2. Heat transfer machine series：flatbed heat press machine, roller heat transfer machine, mainly for clothing and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
