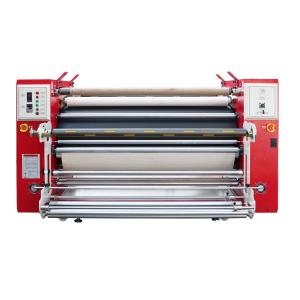

Roller heat press machine
- Product Item : BA61230
- Category：Single lanyard -BA
- Roller diameter: 610 mm
- Roller Width: 2300 mm
- Printing speed: 150-450 m/h
- Voltage: 3 phase 220 V / 380 V
Main features:
1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.
2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.
3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.
4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.
5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

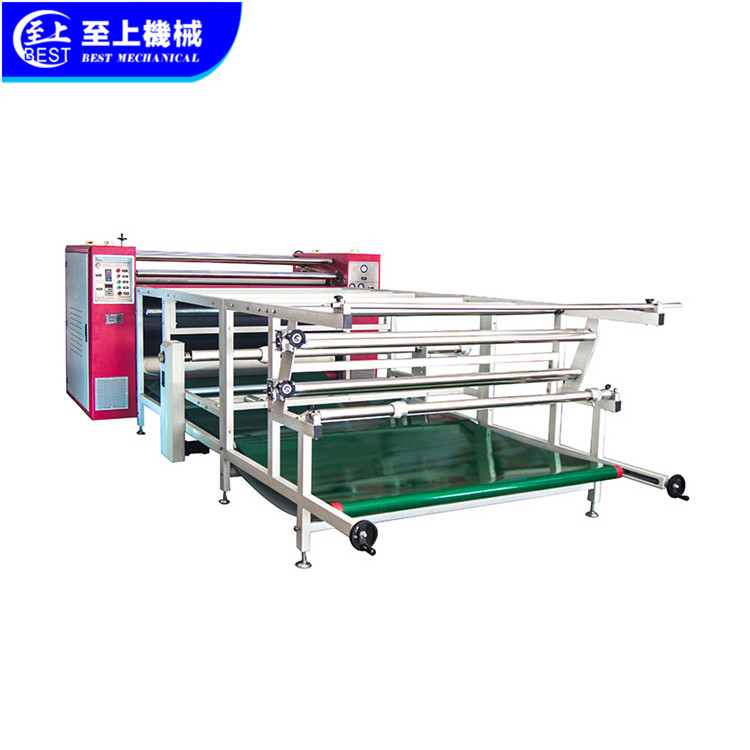

| Roller heat transfer machine | |||
| Model | BA61120 | BA61170 | BA61190 |
| Transfer width | 1200 mm (47'') | 1700 mm (67'') | 1900 mm (74.8") |
| Blanket size | 1250*3480*10 mm | 1750*3480*10 mm | 1950*3480*10 mm |
| heating Power | 32.5 KW | 40.5 KW | 40.5 KW |
| Heating media | Oil | ||
| Voltage | 3 phase 220 V/380 V | ||
| Number of heating elements | 27 | ||
| Diameter of drum | 610 mm | ||
| transfer speed | 150-450 m/h | ||
| Max. Temperature | 260 ℃ | ||
| Process Path | feeding in through the top of drum | ||
| Blanket separation method | manual | ||
| Sensor adjust the Blanket device | no | ||
| Function of roll-to-roll | yes | ||
| Function of piece-by piece | yes | ||
| Number of feeding rollers | 3 | ||
| Number of collection rollers | 2 | ||
| Number of air shaft | no | ||
| worktable | yes, without glass | ||
| Air compressor | needed, 1 P, (not include) | ||
| machine weight | 1500 KG | 1700 KG | 1900 KG |
| Worktable size | 3.5*1.55*1.2 m | 3.5*1.88*1.2 m | 3.5*2.05*1.2 m |
Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine, digital inkjet printer, digital cloth inkjet printer.
Company is committed to digital printing technology research and development, has achieved fruitful results.
Products:
1. Digital machine series: Digital inkjet printer, digital cloth inkjet printer for roll and pieces.
2. Heat transfer machine series：flatbed heat press machine, roller heat transfer machine, mainly for clothing and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
