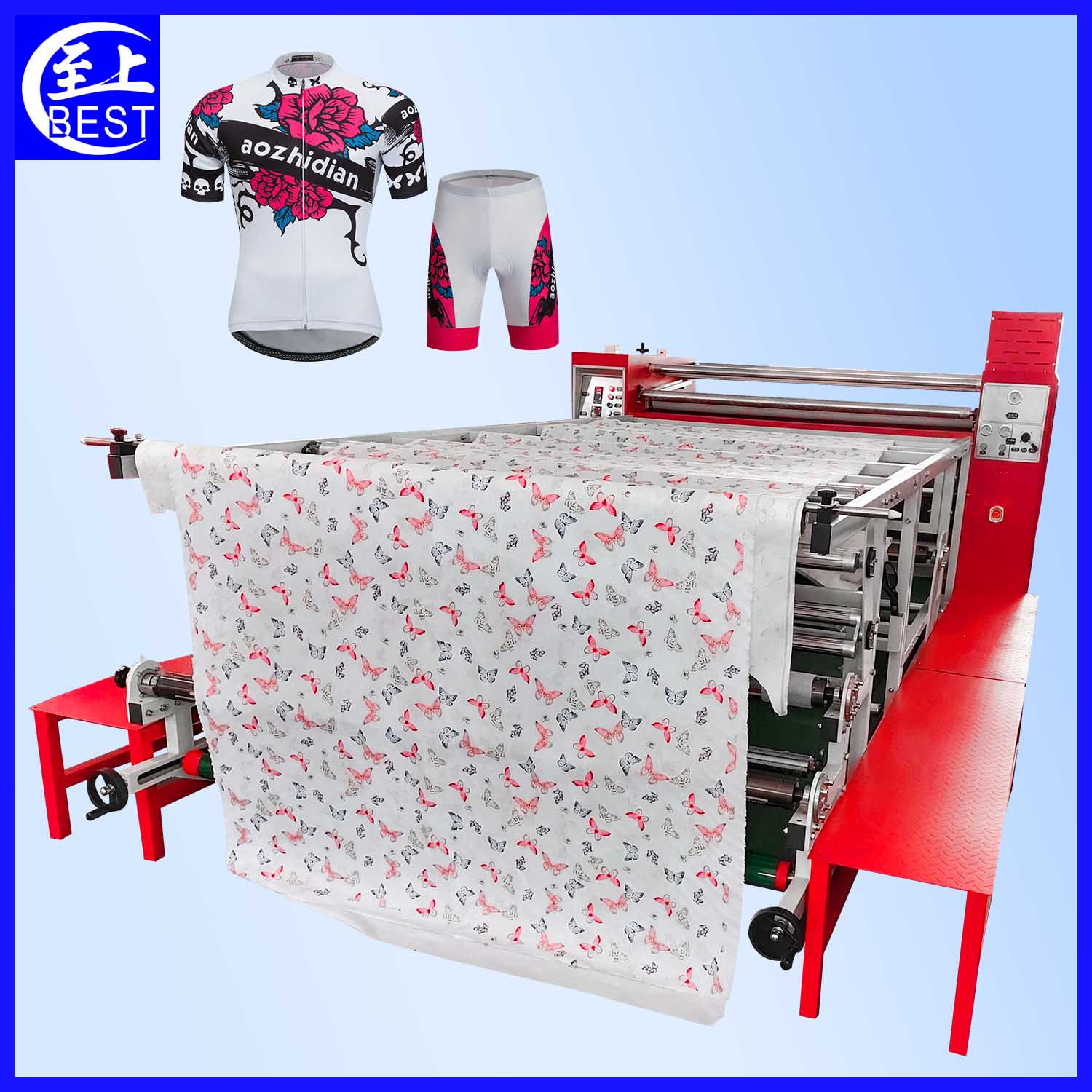

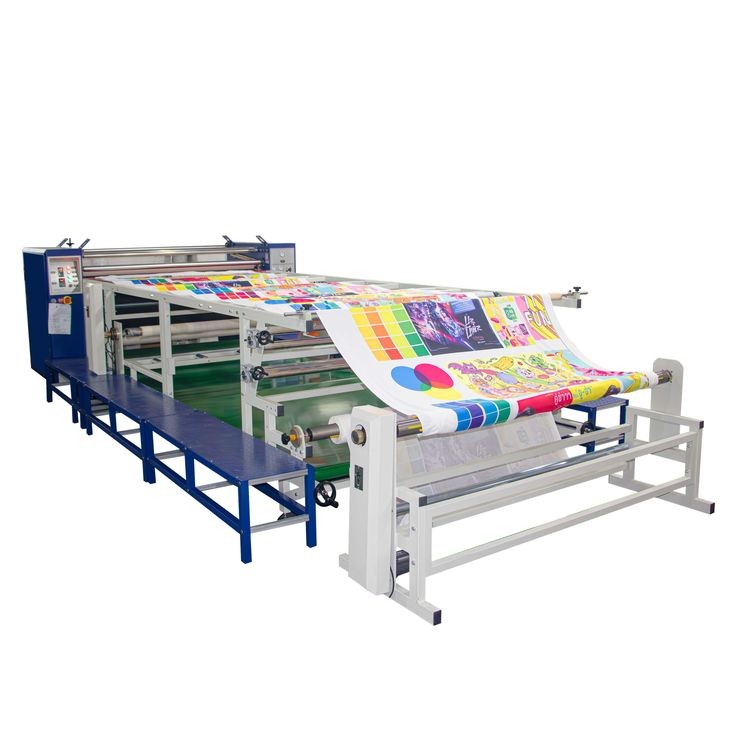

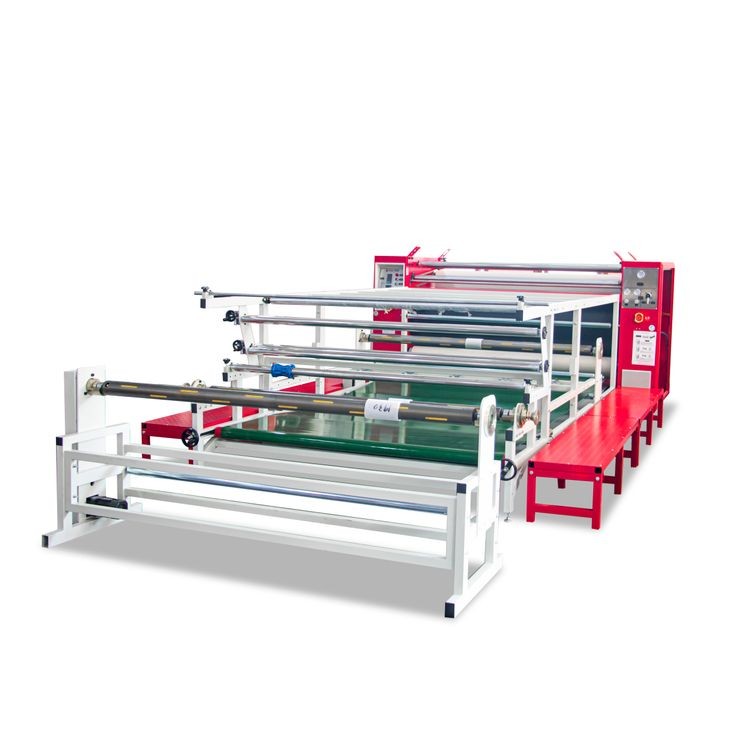

Roller heat press machine Roller heat press machine

Roller heat press machine

  • Product Item : BC61190
  • Category:High speed-BC
  • Roller diameter: 610 mm
  • Roller Width: 1900 mm
  • Printing speed: 150-450 m/h
  • Voltage: 3 phase 220 V / 380 V
  • INQUIRY   EMAIL

Main features:

1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Integrated slip ring: free maintenance

4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.

6. Small machine, proofing and producing, lower cost.


Roller heat transfer machine
Model BB61120 BB61170 BB61190
Transfer width 1200 mm (47'') 1700 mm (47'') 1900 mm (74.8")
Blanket size 1250*3480*10 mm 1750*3480*10 mm 1950*3480*10 mm
heating Power 32.5 KW 40.5 KW 40.5 KW
Heating media Oil
Voltage 3 phase 220 V/380 V
Number of heating elements 27
Diameter of drum 610 mm
transfer speed 150-450 m/h
Max. Temperature 260 ℃
Process Path feeding in through the top of drum
Blanket separation method manual
Sensor adjust the Blanket device no
Function of roll-to-roll yes
Function of piece-by piece yes
Number of feeding rollers 3
Number of collection rollers 2
Number of air shaft 2
worktable yes, without glass
Air compressor needed, 1 P, (not include)
machine weight 1900 KG 2100 KG 2400 KG
Worktable size 3.5*1.55*1.2 m 3.5*1.88*1.2  m 3.5*2.05*1.2 m
