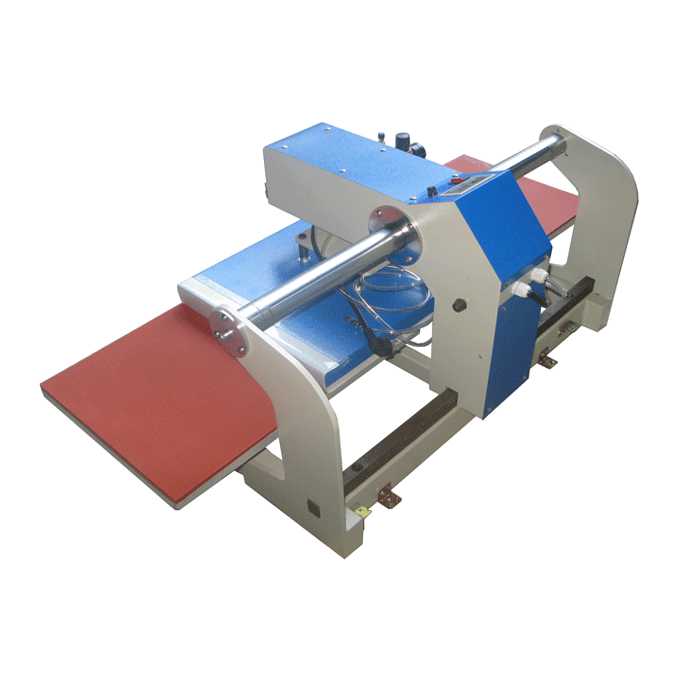

Pneumatic slide-arm heat press machine
- Product Item : HS2-TC4050MA
- Category：Pneumatic heat press
Technical Parameters:
| Model No. | HS2-TC3838MA | HS2-TC4050MA | HS2-TC4060MA |
| Stamping plate size | 15"x15" | 16"x19" | 16"x23" |
| working table siz | 16"x16" | 17"x20" | 17"x24" |
| Max pressure | 0-8Kg /cm2 | 0-8Kg/cm2 | 0-8Kg/cm2 |
| Underdraught stroke | 1.57" | 1.57" | 1.57" |
| Heater wattage | 2700W | 4600 W | 6400 W |
| Temp. adjustment range | 0-260°C | 0-260°C | 0-260°C |
| Net weight | 65 Kg | 85 Kg | 105 Kg |
| Time setting range | 0-999s | 0-999s | 0-999s |
Advantage:
1. Heating temperature, heating time, and heating press is controllable .
2. Tolerance of temperature can be controlled within 5 degree.
3. The perfectly balanced platens can move from side to side easly.
4. Electronic LCD thermostat, 0-60 seconds when the control pressure is adjustable;
5. The heating plate Teflon anti-sticking coating;
6. Split the heating wire and the heating plate, safe, durable, easy to replace;
7. Imported high temperature silicone gasket, the temperature reached 300 degrees
