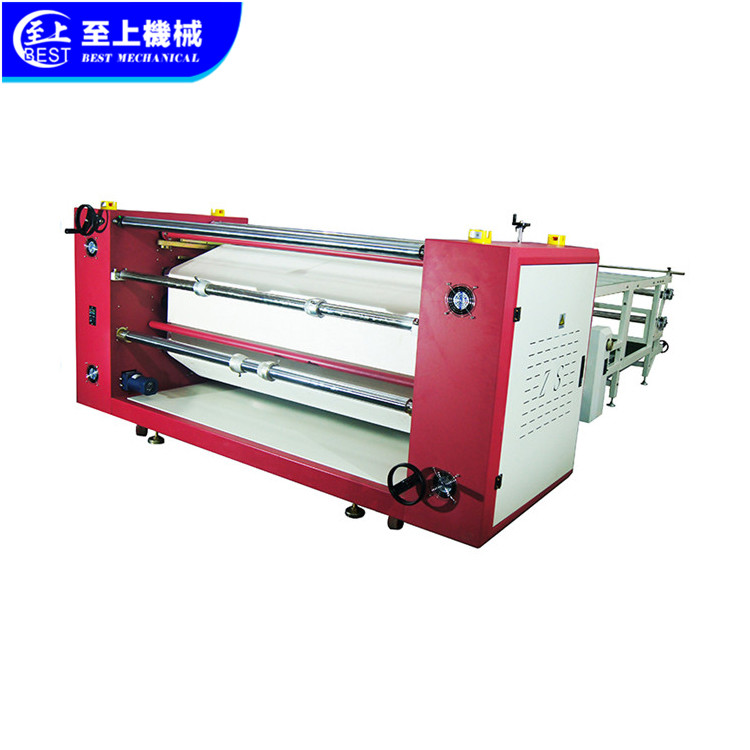

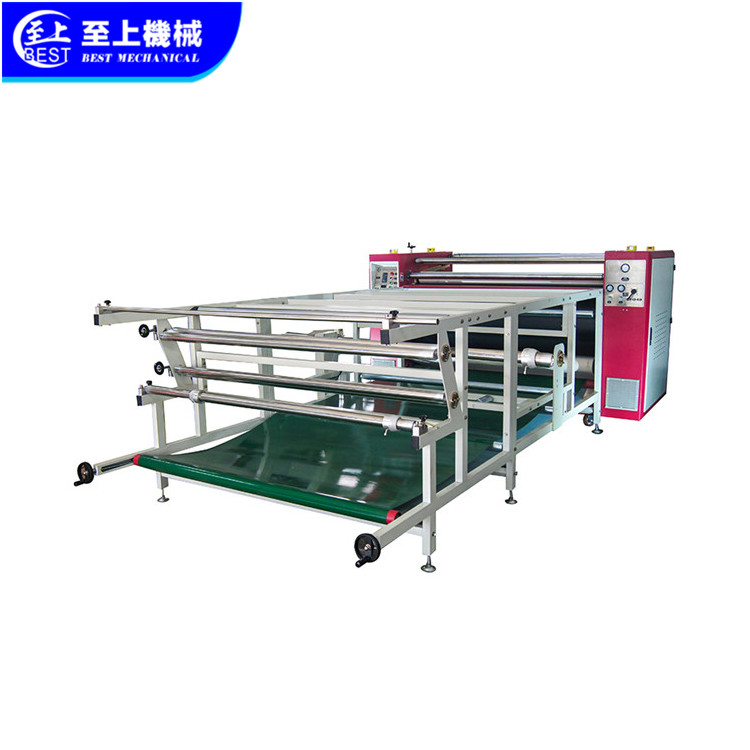

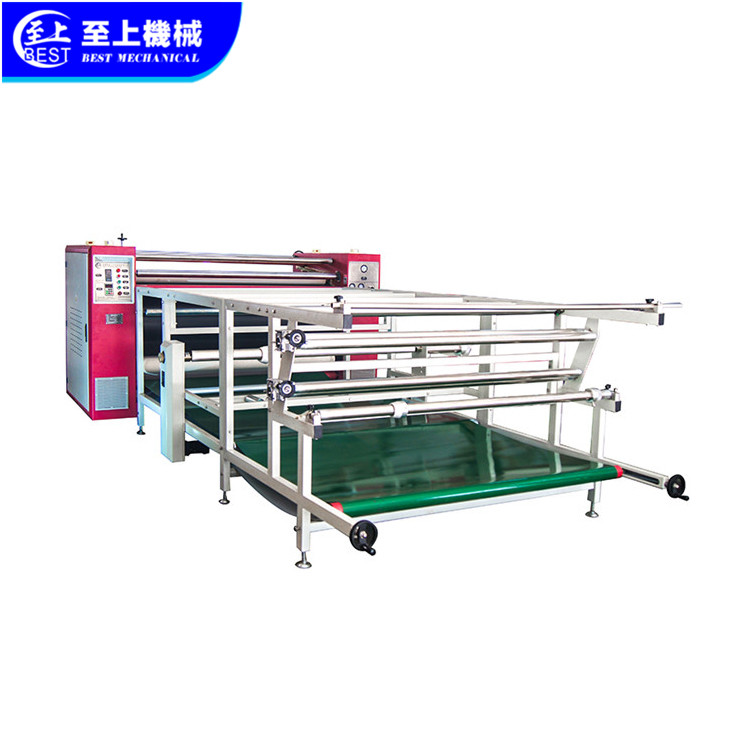

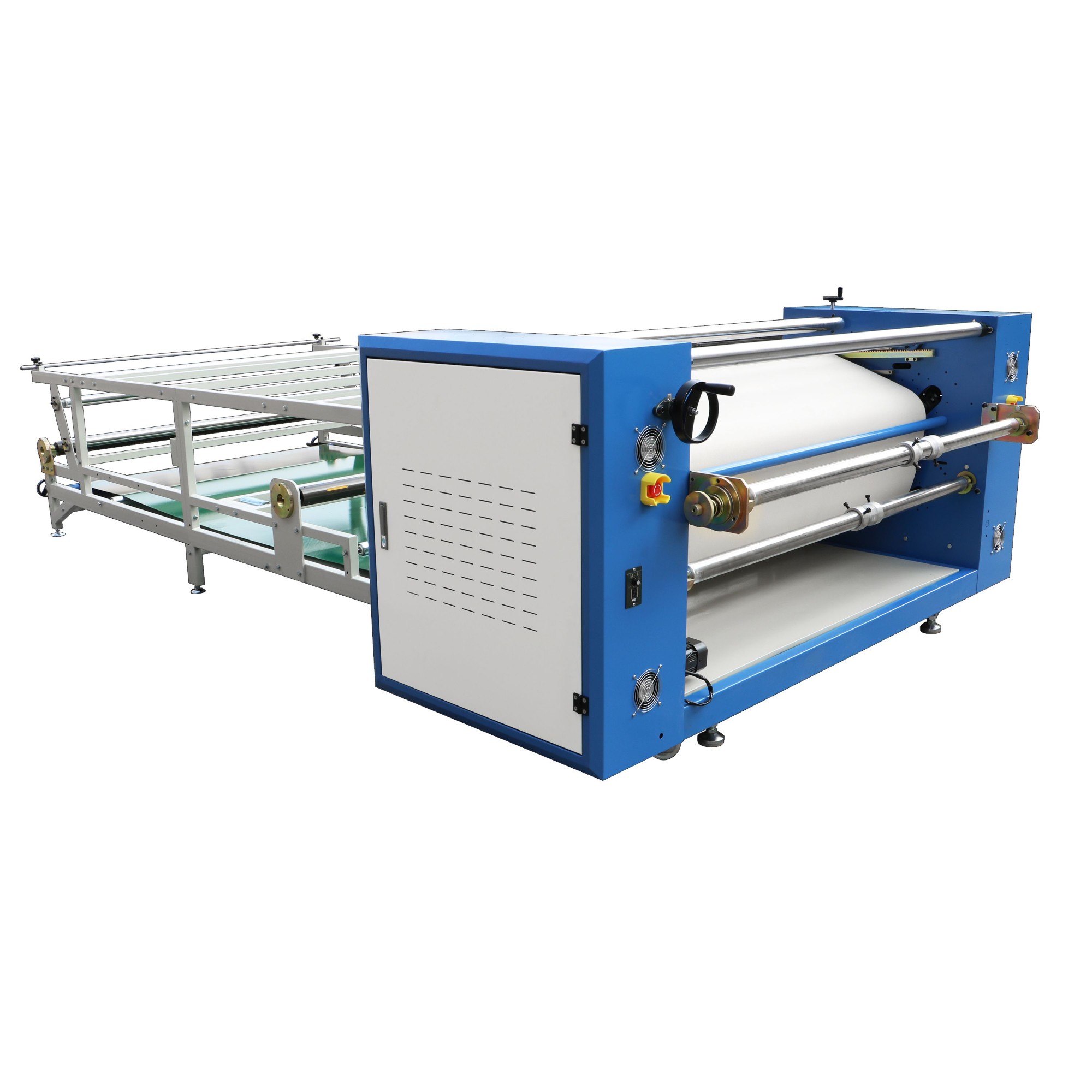

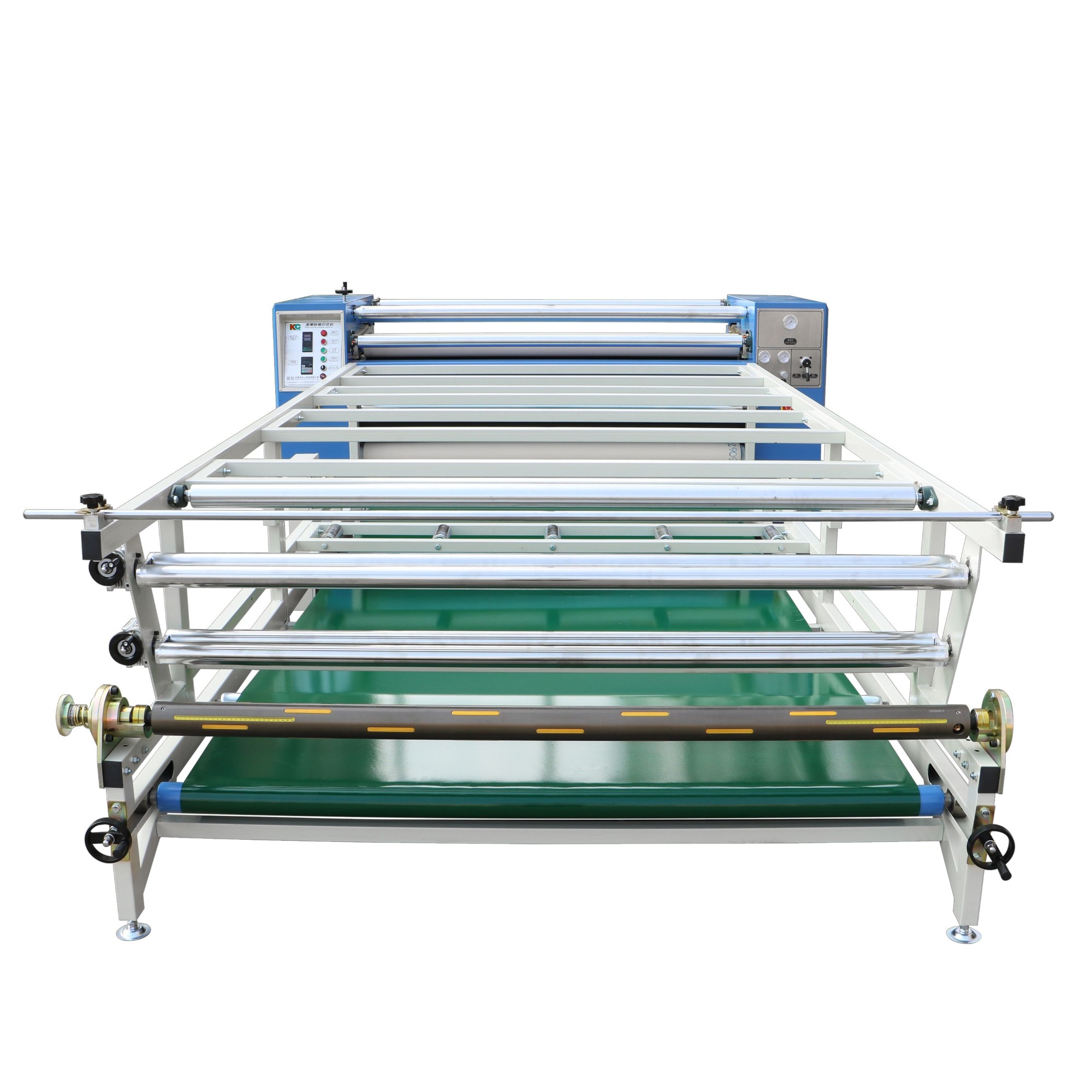

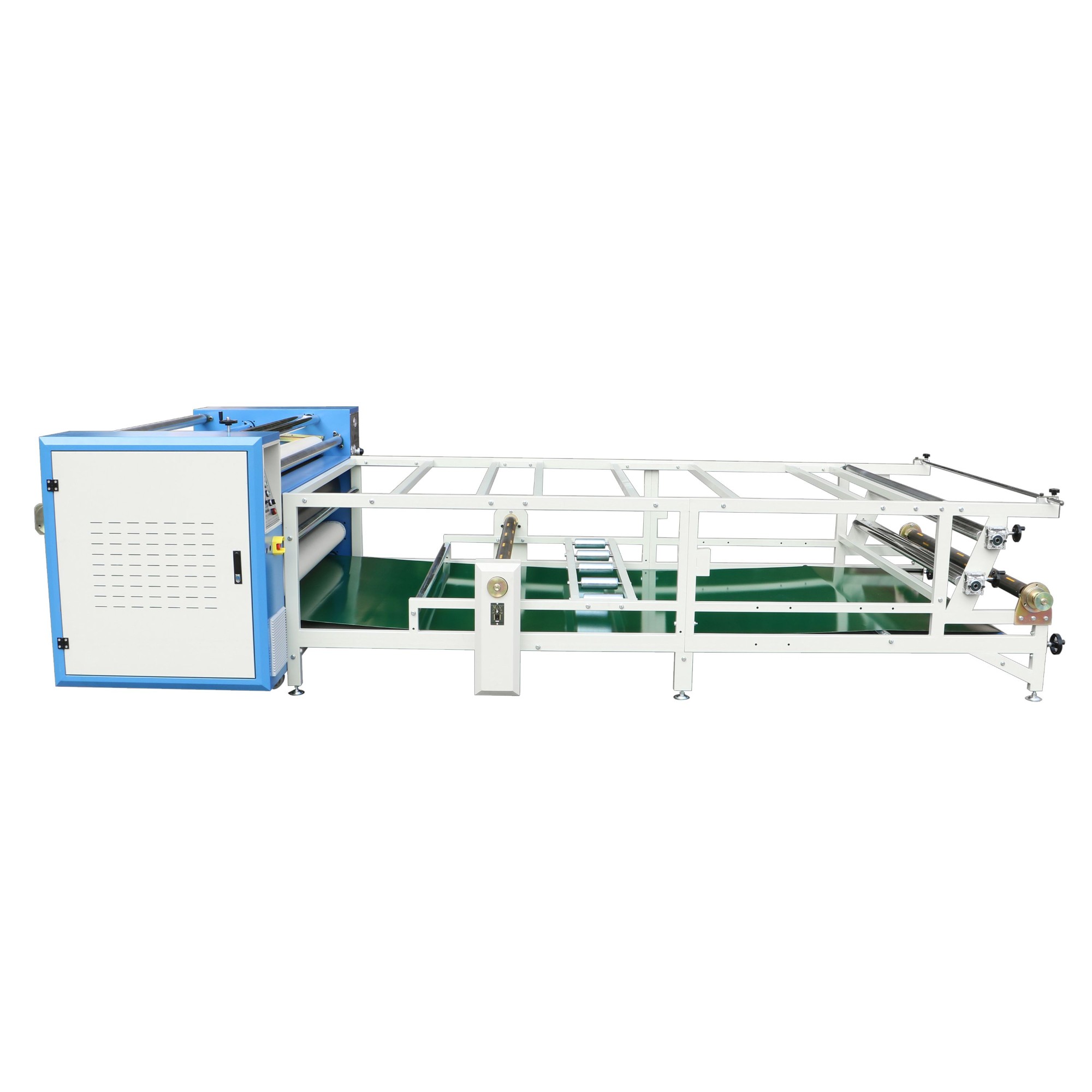

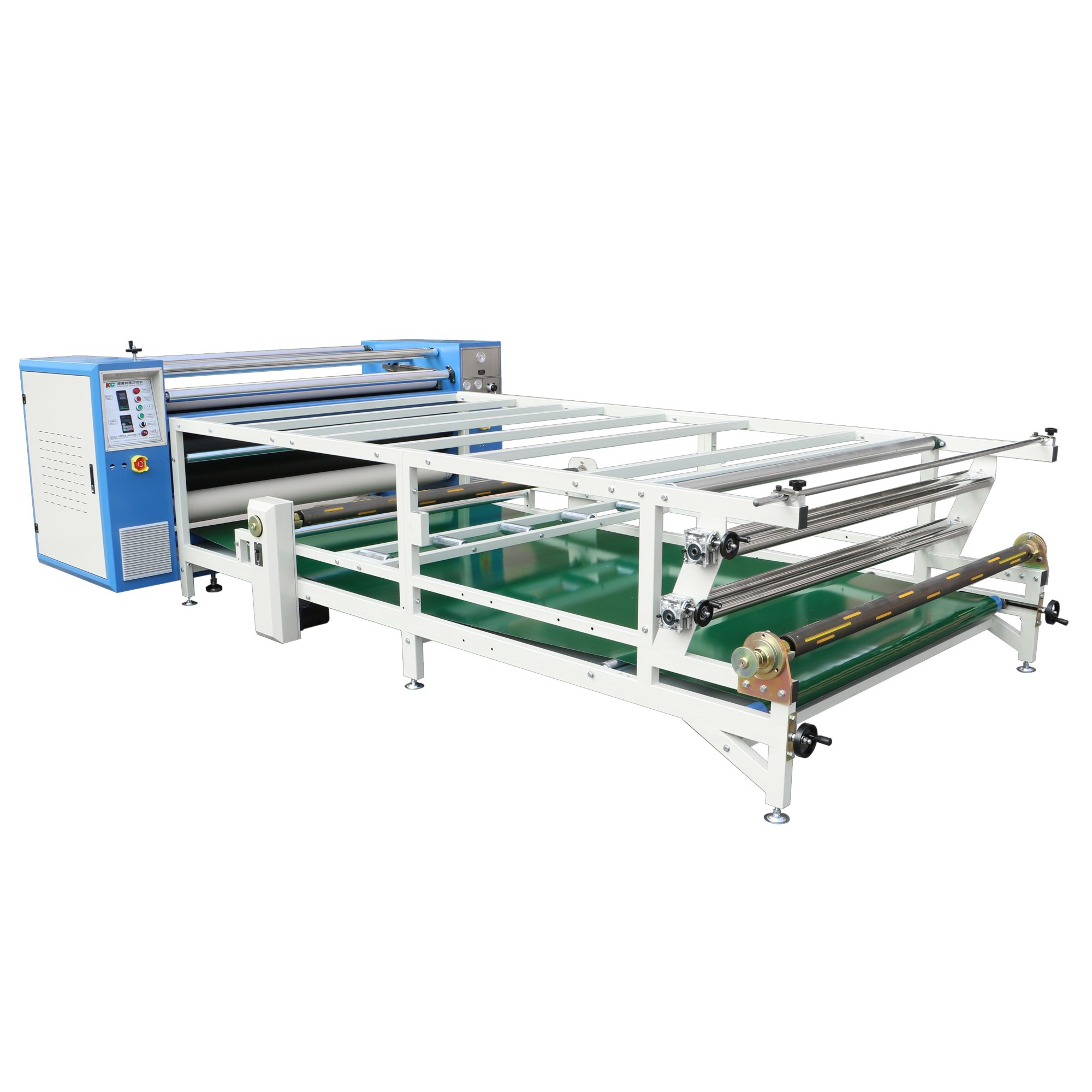

Roller heat transfer machine BA42210

Main features:

1. DuPont Blanket : Blanket is made of American DuPont materials, 10 mm thickness, good transfer effect, long service life.

2. Single drum: Inside / outside cylinder finishing, cylindrical precision grinding machine, drum heating evenly, no color difference.

3. Carbon brush slip ring: Carbon brush direct conductive ring, good conductive performance, low maintenance cost and long service life.

4. Heating tube: Taiwan stainless steel heating tube, heat the conductive oil directly, temperature can raise to 200 ℃ with in 45 minutes.

5. Universal bearing: we use the lasted universal bearing, which can effectively reduce the wear of bearing and reduce the loss of parts.



Roller heat transfer machine
Model BA42120 BA42170 BA42190
Transfer width 1200 mm (47'') 1700 mm (67'') 1900 mm (74.8")
Blanket size 1250*2680*10 mm 1750*2680*10 mm 1950*2680*10 mm
heating Power 21.6 KW 27 KW 27 KW
Heating media Oil
Voltage 3 phase 220 V/380 V
Number of heating elements 18
Diameter of drum 420 mm
transfer speed 120-180 m/h
Max. Temperature 260 ℃
Process Path feeding in through the top of drum
Blanket separation method manual
Sensor adjust the Blanket device no
Function of roll-to-roll yes
Function of piece-by piece yes
Number of feeding rollers 3
Number of collection rollers 2
Number of air shaft no
worktable yes, without glass
Air compressor needed, 1 P, (not include)
machine weight 900 KG 1200 KG 1600 KG
Worktable size 3.5*1.55*0.9 m 3.5*1.88*0.9  m 3.5*2.05*0.9 m


Best printing machinery Co., LTD. is specialized in roller heat transfer machine, flatbed heat press machine, digital inkjet printer, digital cloth inkjet printer.

Company is committed to digital printing technology research and development, has achieved fruitful results.

Products:

1. Digital machine series: Digital inkjet printer,  digital cloth inkjet printer for roll and pieces.

2. Heat transfer machine seriesflatbed heat press machine, roller heat transfer machine, mainly for clothing and textile fabrics, cosmetics packaging, toy manufacturer, gift processing, daily necessities, ceramics and other metal products.
